A performance investigation of a multi-staging hydrokinetic turbine for river flow
DOI:
https://doi.org/10.37934/progee.17.1.1731Keywords:
Savonius turbine, Two-staged hydrokinetic turbine, Tip speed ratioAbstract

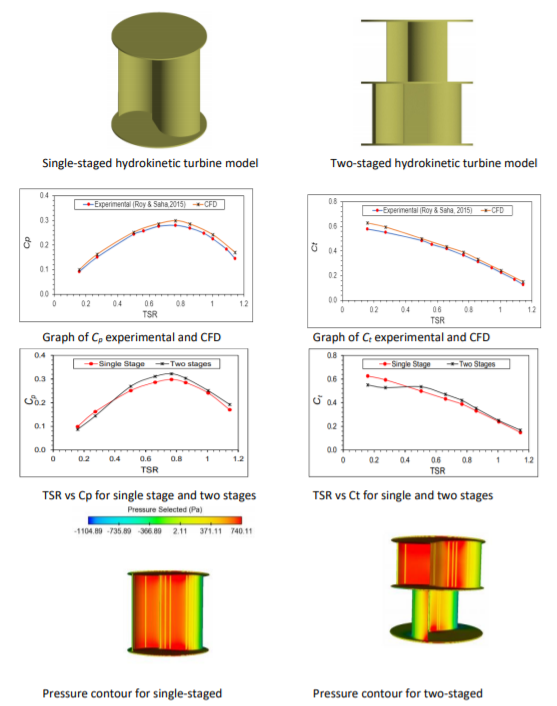

Our world has been relying on fossil fuel, a non-renewable energy that is depleting day by day and negatively impacting the environment. Hydropower is known to contribute a significant portion of the renewable power production. Dams has been the most common technique to generate hydropower. However, such scheme was not able to support the rural areas as it requires large areas and huge amount of water resource. Savonius hydrokinetic turbine (HKT) has been suggested as the device for a small-scale application as it can generate power from low-velocity river flow with less installation cost. With that, the aim of this study is designed to investigate and compare performance of the single-staged and two-staged HKT for river flow. This study considered numerical simulation that includes modelling, testing, and analyzing the data. Then, comparing it with the existing literature results, to identify the solution. This investigation demonstrates an improvement of 8.1% in the efficiency of power coefficient when compared with single-staged HKT.
References
P. Yatim, M.N. Mamat, S.H. Mohamad-Zailani, S. Ramlee, Energy policy shifts towards sustainable energy future for Malaysia, Clean Technologies and Environmental Policy 18 (2016) 1685–1695. https://doi.org/10.1007/s10098-016-1151-x.
International Energy Agency. Global Energy & CO2 Status Report, Pari, 2019.
B. Mayor, I. Rodríguez-Muñoz, F. Villarroya, E. Montero, E. López-Gunn, The role of large and small scale hydropower for energy and water security in the Spanish Duero basin, Sustainability 9(10) (2017) 1807. https://doi.org/10.3390/su9101807.
A.V. Nekrasov, D.A. Romanenkov, Impact of tidal power dams upon tides and environmental conditions in the Sea of Okhotsk, Continental Shelf Research, 30 (2010) 538–552. https://doi.org/10.1016/j.csr.2009.06.005.
A.N. Gorban’, A.M. Gorlov, V.M. Silantyev, Limits of the turbine efficiency for free fluid flow, Journal of Energy Resources Technology 123 (2001) 311–317. https://doi.org/10.1115/1.1414137.
N.D. Laws, B.P. Epps, Hydrokinetic energy conversion: Technology, research, and outlook, Renewable & Sustainable Energy Reviews 57 (2016) 1245–1259. https://doi.org/10.1016/j.rser.2015.12.189.
M. Badrul Salleh, N.M. Kamaruddin, Z. Mohamed-Kassim, Savonius hydrokinetic turbines for a sustainable river-based energy extraction: A review of the technology and potential applications in Malaysia, Sustainable Energy Technologies and Assessments 36 (2019) 100554. https://doi.org/10.1016/j.seta.2019.100554.
P.K. Talukdar, V. Kulkarni, U.K. Saha, Performance estimation of Savonius wind and Savonius hydrokinetic turbines under identical power input, Journal of Renewable and Sustainable Energy 10 (2018) 064704. https://doi.org/10.1063/1.5054075.
N.R. Maldar, C.Y. Ng CY, E. Oguz, A review of the optimization studies for Savonius turbine considering hydrokinetic applications, Energy Conversion and Management 226 (2020) 113495. https://doi.org/10.1016/j.enconman.2020.113495.
A. Kumar, R.P. Saini, Performance analysis of a Savonius hydrokinetic turbine having twisted blades, Renewable Energy 108 (2017) 502–522. https://doi.org/10.1016/j.renene.2017.03.006.
T. Burton, N. Jenkins, B. Ervin, D. Sharpe, M. Graham, Wind Energy Handbook, 3rd ed.. Wiley Online Library, 2021.
J. VanZwieten, W. McAnally, J. Ahmad, T. Davis, J. Martin, M. Bevelhimer, A. Cribbs, R. Lippert, T. Hudon, M. Trudeau, In-Stream hydrokinetic power: Review and appraisal, Journal of Energy Engineering 141 (2015) 04014024. https://doi.org/10.1061/(asce)ey.1943-7897.0000197.
I.B. Alit, R. Sutanto, I.M. Mara, M. Mirmanto, Effect of concentrator, blade diameter and blade number on the Savonius wind turbine performance, Asian Journal of Applied Sciences 5(2) (2017) 343–351. https://doi.org/10.24203/ajas.v5i2.4610.
J.P. Abraham, B.D. Plourde, G.S. Mowry, W.J. Minkowycz, E.M. Sparrow, Summary of Savonius wind turbine development and future applications for small-scale power generation, Journal of Renewable Sustainable Energy 4(4) (2012) 042703. https://doi.org/10.1063/1.4747822.
D. Mahesa Prabowoputra, S. Hadi, J.M. Sohn, A.R. Prabowo, The effect of multi-stage modification on the performance of Savonius water turbines under the horizontal axis condition, Open Engineering 10 (2020) 793–803. https://doi.org/10.1515/eng-2020-0085.
M. Nakajima, S. Iio, T. Ikeda, Performance of double-step Savonius rotor for environmentally friendly hydraulic turbine, Journal of Fluid Science and Technology 3 (2008) 410–419. https://doi.org/10.1299/jfst.3.410.
M.N.I. Khan, M. Tariq Iqbal, M. Hinchey, V. Masek, Performance of Savonius rotor as a water current turbine, The Journal of Ocean technology 4 (2009) 71–83.
J.L. Menet, A double-step Savonius rotor for local production of electricity: A design study, Renewable Energy 29 (2004) 1843–1862. https://doi.org/10.1016/j.renene.2004.02.011.
U.K. Saha, S. Thotla, D. Maity, Optimum design configuration of Savonius rotor through wind tunnel experiments, Journal of Wind Engineering and Industrial Aerodynamics 96 (2008) 1359–1375. https://doi.org/10.1016/j.jweia.2008.03.005.
K. Golecha, T.I. Eldho, S.V. Prabhu, Influence of the deflector plate on the performance of modified Savonius water turbine, Applied Energy 88 (2011) 3207–3217. https://doi.org/10.1016/j.apenergy.2011.03.025.
O.B. Yaakob, D.T. Suprayogi, M.P. Abdul Ghani, K.B. Tawi, Experimental studies on savonius-type vertical axis turbine for low marine current velocity. International Journal of Engineering Transaction A: Basics 26 (2013) 91–98. https://doi.org/10.5829/idosi.ije.2013.26.01a.12.
K.K. Sharma, R. Gupta, A. Biswas, Performance measurement of a two-stage two-bladed Savonius rotor, International Journal of Renewable Energy Research 4 (2014) 115–121.
S. Frikha, Z. Driss, E. Ayadi, Z. Masmoudi, M.S. Abid, Numerical and experimental characterization of multi-stage Savonius rotors, Energy 114 (2016) 382–404. https://doi.org/10.1016/j.energy.2016.08.017.
L.B. Kothe, S.V. Möller, A.P. Petry, Numerical and experimental study of a helical Savonius wind turbine and a comparison with a two-stage Savonius turbine, Renewable Energy 148 (2020) 627–638. https://doi.org/10.1016/j.renene.2019.10.151.
E. Kerikous, D. Thévenin, Optimal shape of thick blades for a hydraulic Savonius turbine, Renewable Energy 134 (2019) 629–638. https://doi.org/10.1016/j.renene.2018.11.037.
S. Roy, U.K. Saha, Wind tunnel experiments of a newly developed two-bladed Savonius-style wind turbine, Applied Energy 137 (2015) 117–125. https://doi.org/10.1016/j.apenergy.2014.10.022.
J. Chen, L. Chen, L. Nie, H. Xu, Y. Mo, C. Wang, Experimental study of two-stage Savonius rotors with different gap ratios and phase shift angles, Journal of Renewable and Sustainable Energy 8 (2016) 063302. https://doi.org/10.1063/1.4966706.
A. Kumar, R.P. Saini, Numerical investigations on single stage and multi-stage twisted Savonius hydrokinetic turbine, Proceeding of 6th International and 43rd National Conference Fluid Mechanics and Fluid Power, December 15-17, 2016, MNNITA, Allahabad, UP, India FMFP2016 2016:1–3.
N.H. Mahmoud, A.A. El-Haroun, E. Wahba, M.H. Nasef, An experimental study on improvement of Savonius rotor performance, Alexandria Engineering Journal 51 (2012) 19–25. https://doi.org/10.1016/j.aej.2012.07.003.
X. Li, M. Li, S.J. McLelland, L.B. Jordan, S.M. Simmons, L.O. Amoudry, R. Ramirez-Mendoza, P. D. Thorne, Modelling tidal stream turbines in a three-dimensional wave-current fully coupled oceanographic model, Renewable Energy 114 (2017) 297–307. https://doi.org/10.1016/j.renene.2017.02.033.
C. Cardona-Mancilla, R.J.S. Del, D. Hincapié-Zuluaga, E. Chica, A numerical simulation of horizontal axis hydrokinetic turbine with and without augmented diffuser, International Journal of Renewable Energy Research 8 (2018) 1833–1839.
N. Osbourne, D. Groulx, I. Penesis, Three dimensional simulation of a horizontal axis tidal turbine comparison with experimental results, 2nd Asian Wave Tidal Energy Conference, 2014.
W. Tian, Z. Mao, H. Ding, Design, test and numerical simulation of a low-speed horizontal axis hydrokinetic turbine, International Journal of Naval Architecture and Ocean Engineering 10 (2018) 782–793. https://doi.org/10.1016/j.ijnaoe.2017.10.006.
A. Rezaeiha, I. Kalkman, B. Blocken, CFD simulation of a vertical axis wind turbine operating at a moderate tip speed ratio: Guidelines for minimum domain size and azimuthal increment, Renewable Energy 104 (2017) 373–385. https://doi.org/10.1016/j.renene.2017.02.006.
N. Maldar, C.Y. Ng, A. Fitriadhy, H.S. Kang, Numerical investigation of an efficient blade design for a flow driven horizontal axis marine current turbine, Lecture Notes in Civil Engineering 132 (2021) 241–248. https://doi.org/10.1007/978-981-33-6311-3_28.
N.R. Maldar, C.Y. Ng, L.W. Ean, E. Oguz, A. Fitriadhy, H.S. Kang, A comparative study on the performance of a horizontal axis ocean current turbine considering deflector and operating depths, Sustainability 12 (2020) 3333. https://doi.org/10.3390/SU12083333.
N.K. Sarma, A. Biswas, R.D. Misra, Experimental and computational evaluation of Savonius hydrokinetic turbine for low velocity condition with comparison to Savonius wind turbine at the same input power, Energy Conversion and Management 83 (2014) 88–98. https://doi.org/10.1016/j.enconman.2014.03.070.
