Physical and chemical characterization of oil extracted from Citrofortunella microcarpa, Hibiscus sabdariffa and Artocarpus heterophyllus seeds


  • Soon Zheng Fai Department of Chemical and Petroleum Engineering, Faculty of Engineering, UCSI University, Kuala Lumpur, Malaysia
  • Choon Yoong Cheok Department of Chemical and Petroleum Engineering, Faculty of Engineering, UCSI University, Kuala Lumpur, Malaysia



Seed oil, Calamansi, Roselle, Jackfruit, Physicochemical properties


Consumable plant oils had been related with highly nutritional content and antioxidant source that provide crucial health benefits. Hence, in this study a series of experimental work and analysis were conducted to evaluate the practicability and the properties of oil extraction from seeds of calamansi (Citrofortunella microcarpa), roselle (Hibiscus sabdariffa), and jackfruit (Artocarpus heterophyllus). The yield, antioxidant activities, iodine value, saponification value, and peroxide value of extracted seed oils were studied. Results obtained shown that among the three seeds species, calamansi seeds resulted in the highest yield of 32.7%, followed by roselle seeds with a yield of 11.00% and lastly, jackfruit seeds with the highest yield obtained was only 0.60%. Antioxidant activities conducted has shown that roselle with EC50 of 49.04 mg/mL has greater antioxidant properties as compared with calamansi with EC50 of 109.74 mg/mL. Iodine value determined for unheated oil has resulted in a value of 100.83 g I2/100g oil and 110.60 g I2/100g oil that has classified roselle and calamansi seeds oil under the non-drying oil categories and heating effect shown a slight decrease in the iodine value due to loss of unsaturation within the oil.  Both calamansi and roselle seed oils did not show significance reduction in saponification value upon heating. Peroxide value for roselle and calamansi seeds oil under unheated condition was determined to be 10.36 meq/kg and 24.86 meq/kg respectively.


Y. Zhou, W. Zhao, Y. Lai, B. Zhang and D. Zhang, Edible Plant Oil: Global Status, Health Issues, and Perspectives, Frontiers in Plant Science 11 (2020) 1315.

V.M. Lavenburg, K.A. Rosentrater and S. Jung. Extraction methods of oils and phytochemicals from seeds and their environmental and economic impacts, Processes 9 (2021) 1839.

A. Paul and M. Radhakrishnan, Pomegranate seed oil in food industry: Extraction, characterization, and applications, Trends in Food Science and Technology 105 (2020) 273-283.

M. Nogala-Kalucka, M. Rudzinska, R. Zadernowski, A. Siger and I. Krzyzostaniak, Phytochemical content and antioxidant properties of seeds of unconventional oil plants. JAOCS, Journal of the American Oil Chemists’ Society 87(12) (2010) 1481-1487.

H-C. Chen, L-W. Peng, M-J. Sheu, L-Y. Lin, H-M. Chiang, C-T. Wu, C-S. Wu and Y-C. Chen, Effects of hot water treatment on the essential oils of calamondin, Journal of Food and Drug Analysis 21 (2013) 363-368.

M.Y.T. Morte and L.H Acero, Potential of calamansi (Citrofortunella microcarpa) fruit peels extract in lowering the blood glucose level of Streptozotocin induced Albino rats (Rattus albus), International Journal of Food Engineering 3 (2017) 29-34.

M.W. Cheong, Z.S. Chong, S.Q. Liu, W. Zhou, P. Curran and B. Yu, Characterisation of calamansi (Citrus microcarpa). Part I: Volatiles, aromatic profiles and phenolic acids in the peel, Food Chemistry 134 (2012) 686-695.

C.E. Palma, P.S. Cruz, D.T.C. Cruz, A.M.S. Bugayong and A.L. Castillo, Chemical composition and cytotoxicity of Philippine calamansi essential oil, Industrial Crops and Products 128 (2019) 108-114.

Y.N.A. Manaf, A. Osman, O.M. Lai, K. Long and H.M. Ghazali, Characterisation of musk lime (Citrus microcarpa) seed oil, Journal of the Science of Food and Agriculture 88 (2008) 678-683.

M.A. Naeem, H.A. Zahran and M.M.M. Hassanein, Evaluation of green extraction methods on the chemical and nutritional aspects of roselle seed (Hibiscus sabdariffa L.) oil. OCL - Oilseeds and Fats, Crops and Lipids 26 (2019).

S.B. Swami, N.J. Thakor, P.M. Haldankar and S.B. Kalse, Jackfruit and Its Many Functional Components as Related to Human Health: A Review, Comprehensive Reviews in Food Science and Food Safety 11 (2012) 565-576.

C.Y. Cheok, N.M. Adzahan, R.A. Rahman, N.H.Z. Abedin, N. Hussain, R. Sulaiman and G.H. Chong, Current trends of tropical fruit waste utilization, Critical Reviews in Food Science and Nutrition 58 (2017) 335-361.

N.G. Babu, Extraction and comparison of properties of jackfruit seed oil and sunflower seed oil, International Journal of Scientific & Engineering Research 8 (2017) 635-639.

F.C. Cruz-Casillas, T. García-Cayuela and V. Rodriguez-Martinez, Application of conventional and non-conventional extraction methods to obtain functional ingredients from jackfruit (Artocarpus heterophyllus lam.) tissues and by-products, Applied Sciences 11 (2021) 7303.

W. L. Peng, H. Mohd-Nasir, S.H.M. Setapar, A. Ahmad and D. Lokhat, Optimization of process variables using response surface methodology for tocopherol extraction from Roselle seed oil by supercritical carbon dioxide, Industrial Crops and Products 143 (2019) 111886.

J. Parry, L. Su, M. Luther, K. Zhou, M.P. Yurawecz, P. Whittaker and L. Yu, Fatty acid composition and antioxidant properties of cold-pressed marionberry, boysenberry, red raspberry, and blueberry seed oils, Journal of Agricultural and Food Chemistry 53 (2005) 566-573.

AOAC (2005) Official method of Analysis. 18th Edition, Association of Officiating Analytical Chemists, Washington DC, Method 920.195, 920.160, and 965.33.

G. Bouanga-Kalou, A. Kimbonguila, J.M. Nzikou, F.B. Ganongo-Po, F.E. Moutoula, M. Tchicaillat-Landou, R.M. Bitsangou, T. Silou and S. Desobry, Chemical composition of seed oil from roselle (Hibiscus sabdariffa L.) and the kinetics of degradation of the oil during heating, Research Journal of Applied Sciences, Engineering and Technology 3 (2011) 117-122.

D. L.Madrigal-Aldana, B. Tovar-Gõmez, M. M. M. de Oca, S.G. Sáyago-Ayerdi, F. Gutierrez-Meraz and L.A. Bello-Pérez, Isolation and characterization of Mexican jackfruit (Artocarpus heterophyllus L) seeds starch in two mature stages, Starch/Staerke 63 (2011) 364-372.

S. Jitpinit, C. Siraworakun, Y. Sookklay and K. Nuithitiku. Enhancement of omega-3 content in sacha inchi seed oil extracted with supercritical carbon dioxide in semi-continuous process, Heliyon 8 (2022) e08780.

L. Hssaini, R. Razouk, J. Charafi, K. Houmanat and H. Hanine, Fig seeds: Combined approach of lipochemical assessment using gas chromatography and FTIR-ATR spectroscopy using chemometrics, Vibrational Spectroscopy 114 (2021) 103251.

C.M. Agu, C.C. Orakwue, K.A. Ani, A.C. Agulanna and G.W. Dzarma, Process thermodynamic, kinetics and statistical analysis of Gmelina arborea seed oil extraction as clean environmental friendly industrial base-oil, Case Studies in Chemical and Environmental Engineering 6 (2022) 100216.

Y.M Bayisa and M.S. Bultum, Extraction of oil from Maesa lanceolata seeds and evaluation of its antimicrobial activities, South African Journal of Chemical Engineering 40 (2022) 126–133.

Y.M Bayisa and T.A Bullo, Optimization and characterization of oil extracted from Croton macrostachyus seed for antimicrobial activity using experimental analysis of variance, Heliyon 7 (2021) e08095.

L. Rezig, H. Chemkhi, K. Gharsallah, S. Mokbli, F. B’chir, N. B. Achour, S. Bourgou and M. Chouaibi, Profile characterization and biological activities of cold pressed Garden Cress (Lepidium sativum) seed oil, Arabian Journal of Chemistry 15 (2022) 103958.

S. Pu, R. Liang, J. Chen, C. Liu, C. Xu, M. Chen and J. Chen, Characterization and evaluation of Majia pomelo seed oil: A novel industrial by-product, Food Chemistry Advances 1 (2022) 100051.

T. Boyapati, S.S. Rana and P. Ghosh, Microwave-assisted extraction of dragon fruit seed oil: Fatty acid profile and functional properties, Journal of the Saudi Society of Agricultural Sciences (2022) in press.

T.H. Sanders, Ground nut oil, in: Encyclopedia of Food Sciences and Nutrition (2003).

A.I. Bamgboye, O.I. Adejumo. Physicochemical properties of Roselle seed oil. Nutrition & Food Science 40 (2010) 186-192.

J.C.J. Bart, N. Palmeri, S. Cavallaro, 6 - Emerging new energy crops for biodiesel production, Biodiesel Science and Technology 290 (2010) 226-284.

A.A. Eltayeib and A. Abd Elaziz, Physicochemical properties of Roselle (Hibiscus sabdariffa L.) seeds oil (Elrahad-1) in North Kordofan, Sudan, Journal of Scientific & Innovative Research 3 (2014) 578-582.

I.D. Abdullahi, M.Y. Zakiyya, Ben-Musa and Jibrin, Physicochemical analysis of oil extracted from roselle (Hibiscus sabdariffa L.) seeds in Kano metropolis, Official Publication of Direct Research Journal of Agriculture and Food Science 9 (2021) 297-301.

Codex Alimentarius Commission, Codex Stan 19: edible fats and oils not covered by individual standards. Rome, 2006. Retrieved from

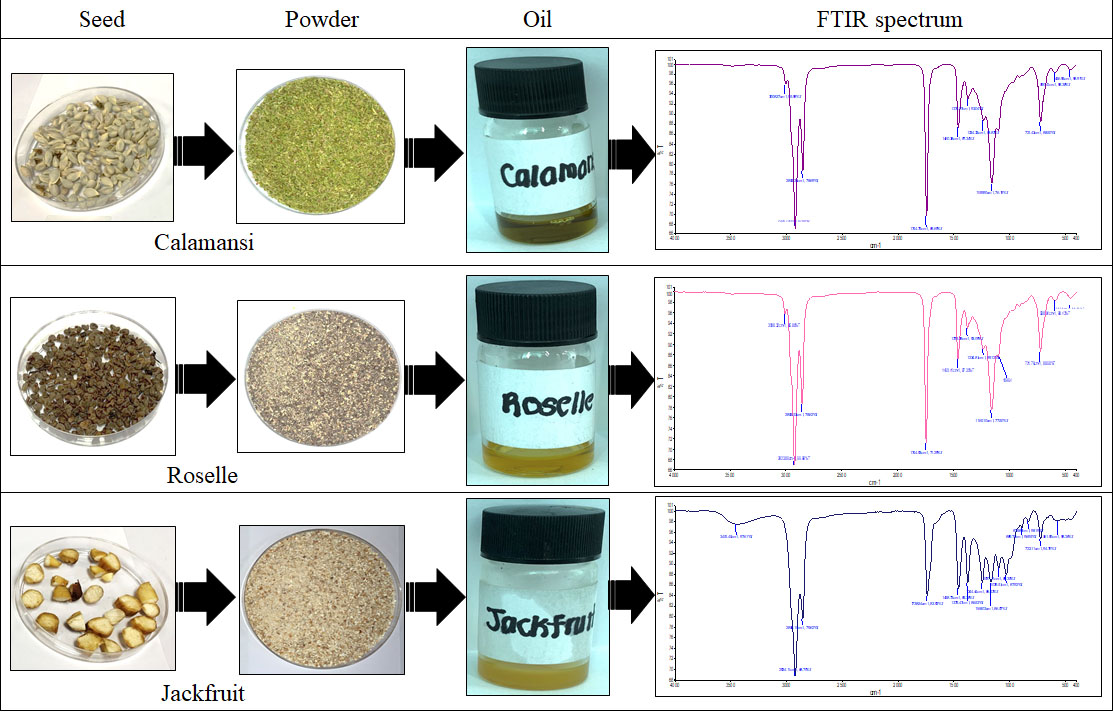

Graphical abstract




How to Cite

S. Z. Fai and C. Y. Cheok, “Physical and chemical characterization of oil extracted from Citrofortunella microcarpa, Hibiscus sabdariffa and Artocarpus heterophyllus seeds”, Prog. Energy Environ., vol. 22, pp. 1–12, Nov. 2022.



Original Article
